Invacare Reliant lifts were conceived to help reduce the possibility of caregiver back injury and to ensure dignity in patient handling. These high-quality lifts are comfortable, reliable and integral tools for staff and caregivers. Using the lift for patient handling can help reduce staff injuries, save you money and reinforce safety as a priority in your health care facility. Invacare Reliant lifts support up to 450 lbs., making potentially challenging transfers smooth for the resident and the caregiver. The high lift range allows easy access to tubs, chairs, commodes, floors and beds (with at least 4.5″ under-bed clearance).

Features:

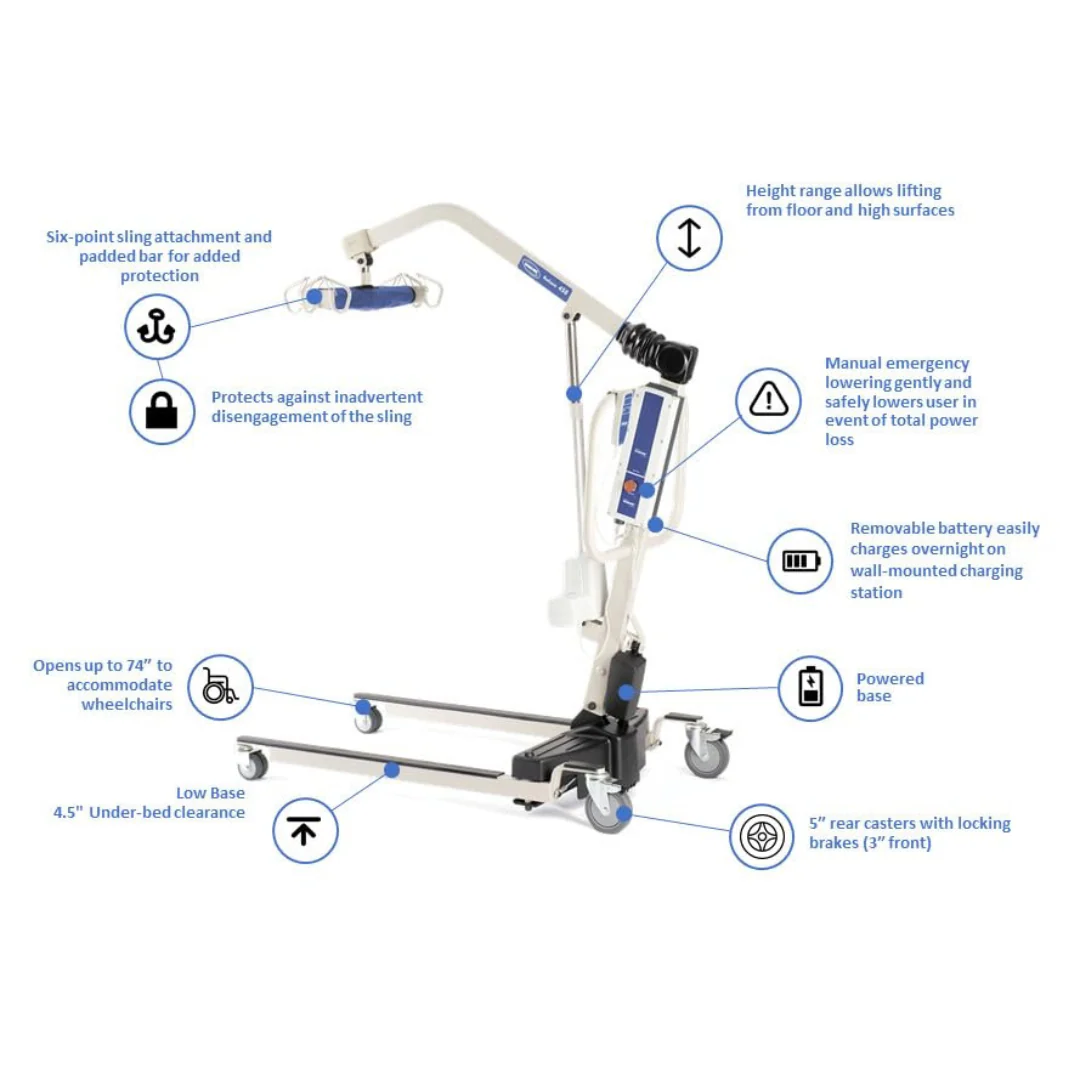

• Total pinch-point protection covers all moving parts for added safety.
• Covered base provides protection against wear, dirt and moisture.
• Height range allows lifting from floor and high surfaces.
• Attractive neutral design blends well into any environment.
• Electronic system includes two 24-volt batteries: one for lift, one for battery-charging station; a manual emergency lowering device; and anti-entrapment if boom meets any resistance while lowering.

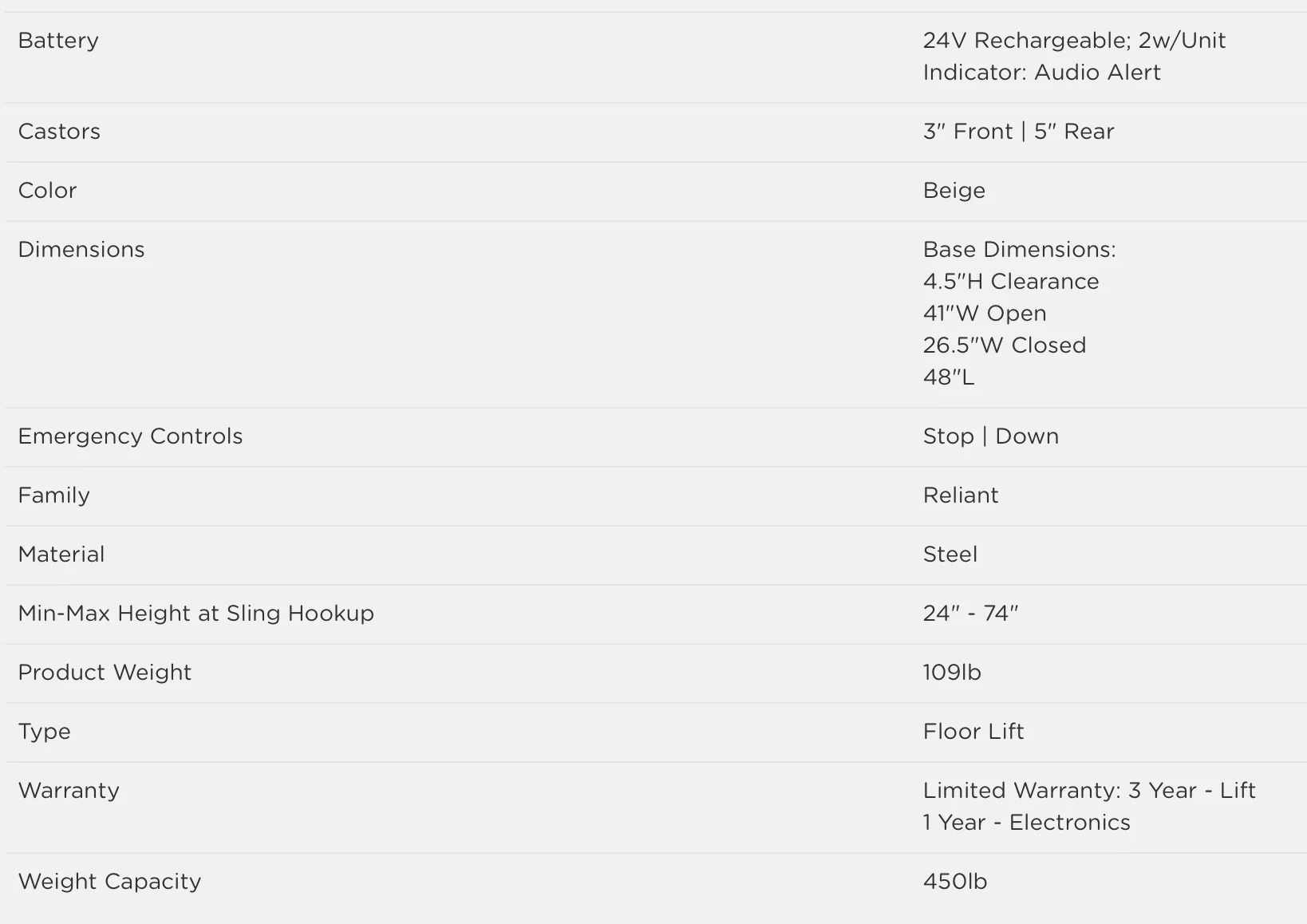

• Overall Height: 24′ – 74″
• Base Length: 48″
• Base Width: Open: 41″, Closed: 26.5″
• Caster Options: Front: 3″, Rear: 5″
• Product Weight Capacity: 450 lbs.
• Product Weight: 106 lbs.
• Battery: 24V Rechargeable sealed
• Charger: Output: 24V DC
• Power: Audible low battery alarm, Lifts per charge: 150 – 300 (varies with lift range and load)
• Automatic  Legs
• MFPN: RPL450-2, RPL4502
• Used with Invacare Heavy-Duty, Full Body/Comfort, Divided Leg/Universal, Easy Fit, and Toileting/Dress Toileting High Slings

Extra Features

Safety and Protection

• Padded swivel bar with 360˚ rotation and 6-point hook-up allows use of Invacare chain-free slings and older slings with chains or straps
• Total pinch-point protection covers all moving parts

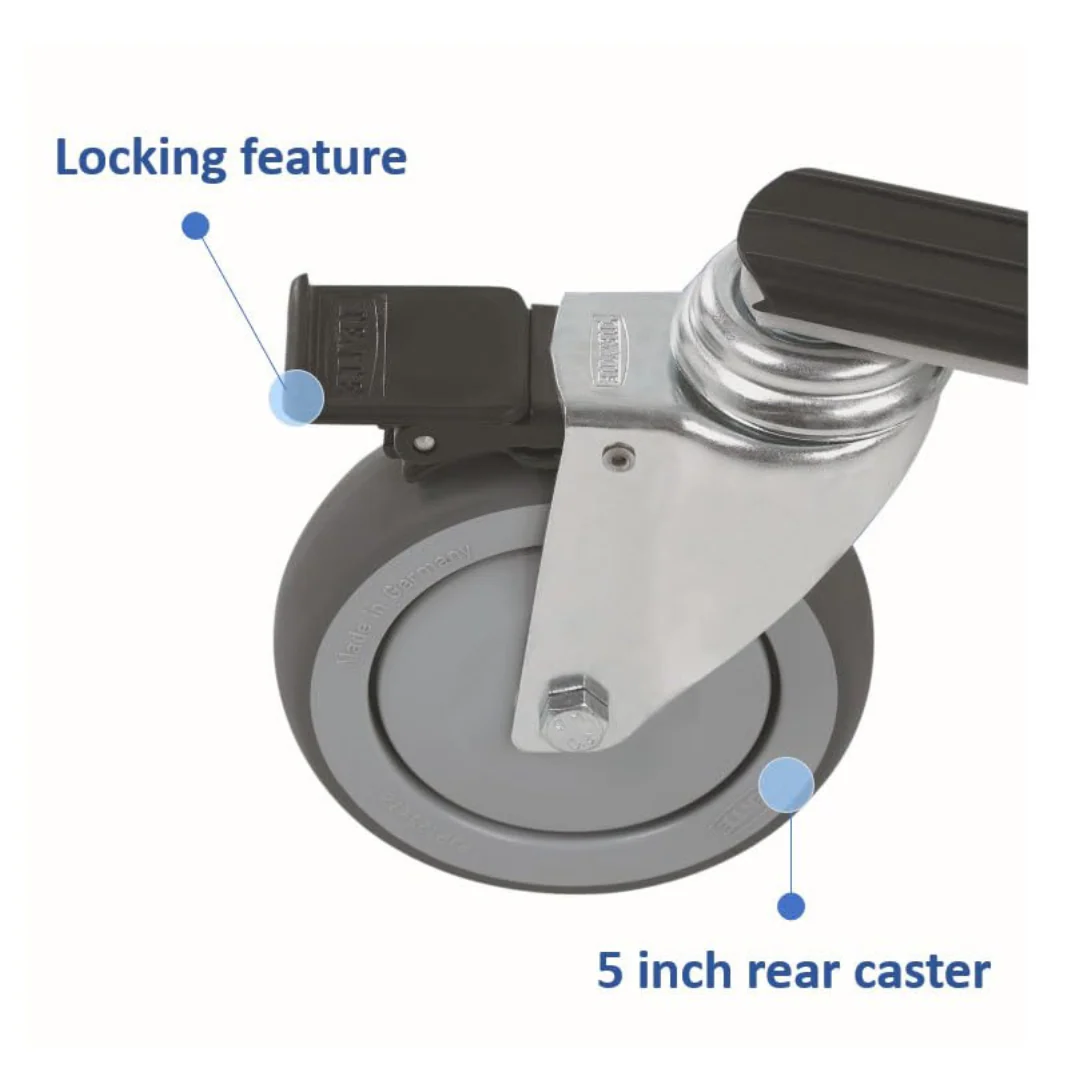

• Low friction casters significantly improve rollability and contribute to caregiver safety
• Multi-grip push handle angled to minimize wrist strain
• Covered base provides protection against wear, dirt and moisture

Electronic System

• Includes two 24-volt batteries: one for lift, one for battery-charging station

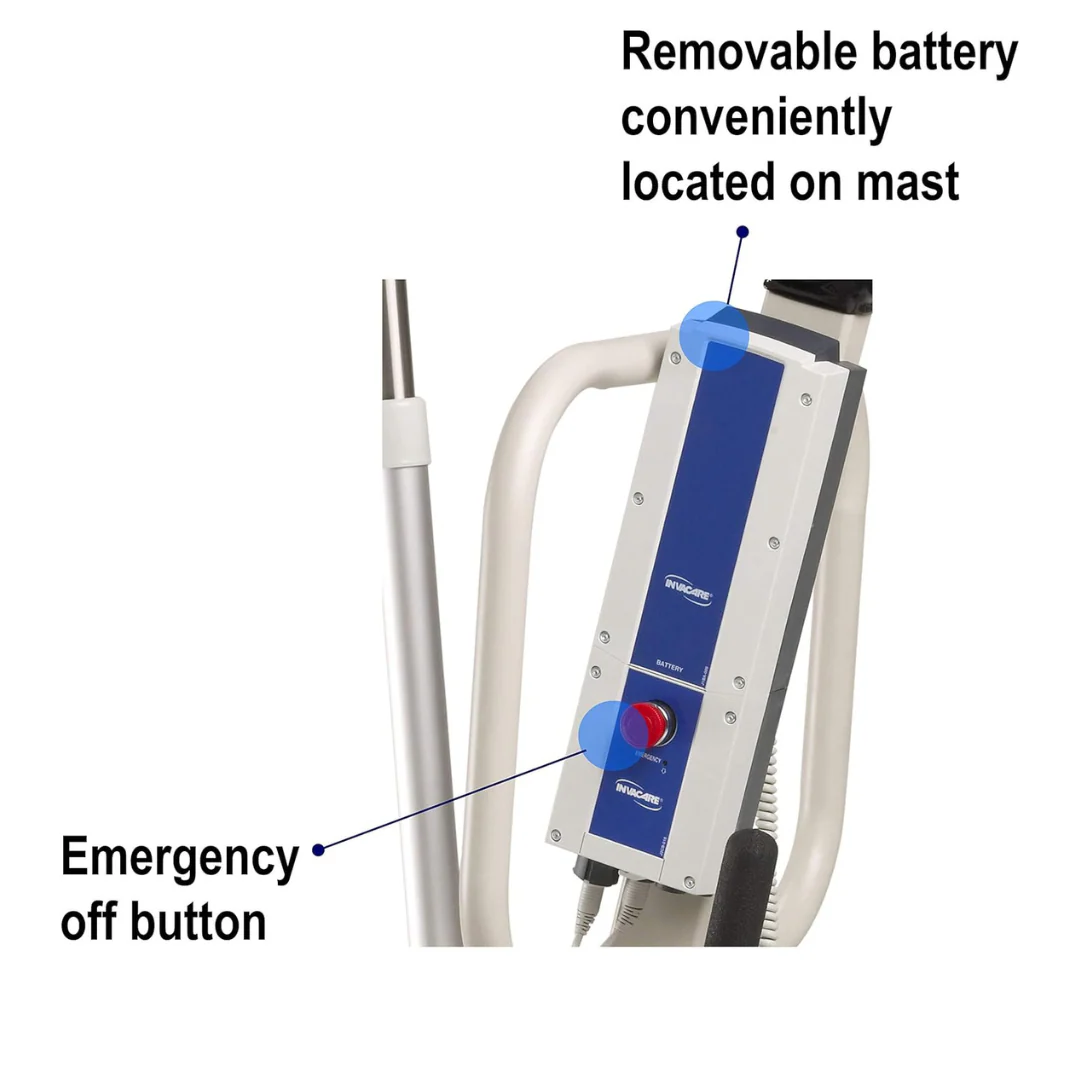

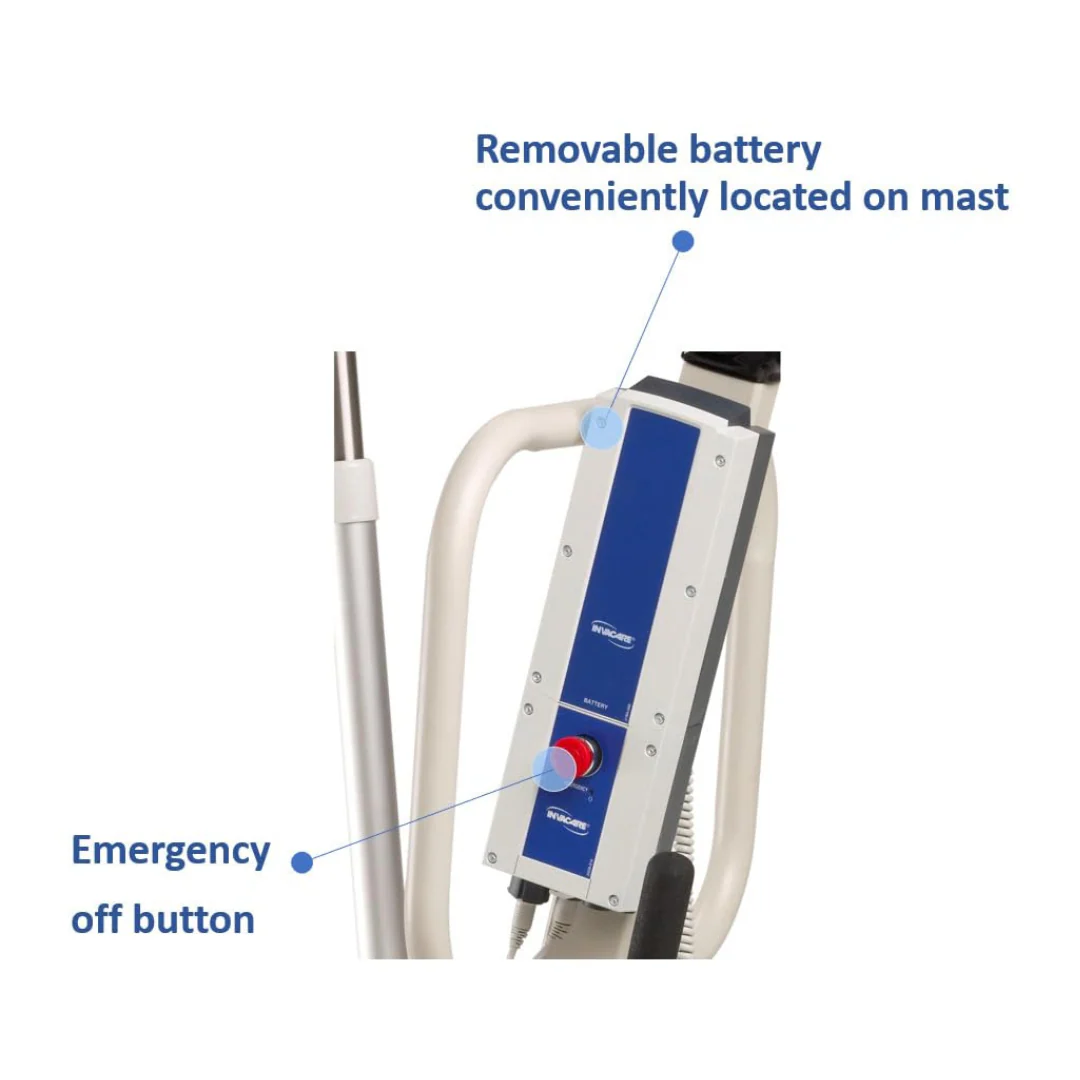

• Removable battery pack eliminates downtime and simplifies the charging process
• Manual lowering for instant response to power loss
• An anti-entrapment feature if boom meets any resistance while lowering
